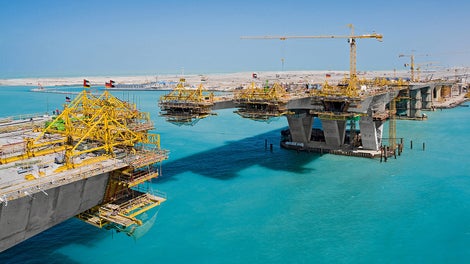

Sheikh Khalifa Bridge, Abu Dhabi, United Arab Emirates - The large spans in the middle bridge sections were concreted by means of the balanced cantilever method.

Sheikh Khalifa Bridge
Abu Dhabi, United Arab Emirates

Connection between Abu Dhabi City and Saadiyat Island

Length: 1,455 m

Width: 60 m (one of the widest bridges in the world)





Location
Main Application
Civil Engineering
Project participants
Customer: ARGE Ed. Züblin AG, Saif Bin Darwish Engineering Contractor

The Project

Impressions from the project process
1 /
8

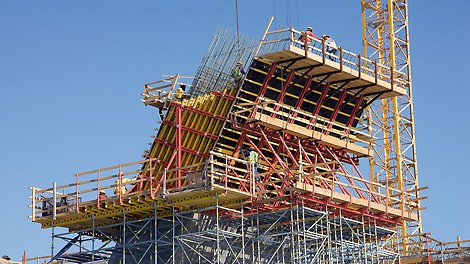

Saadiyat Bridge
Saadiyat Bridge
saadiyat_bridge

Project Information

Requirements

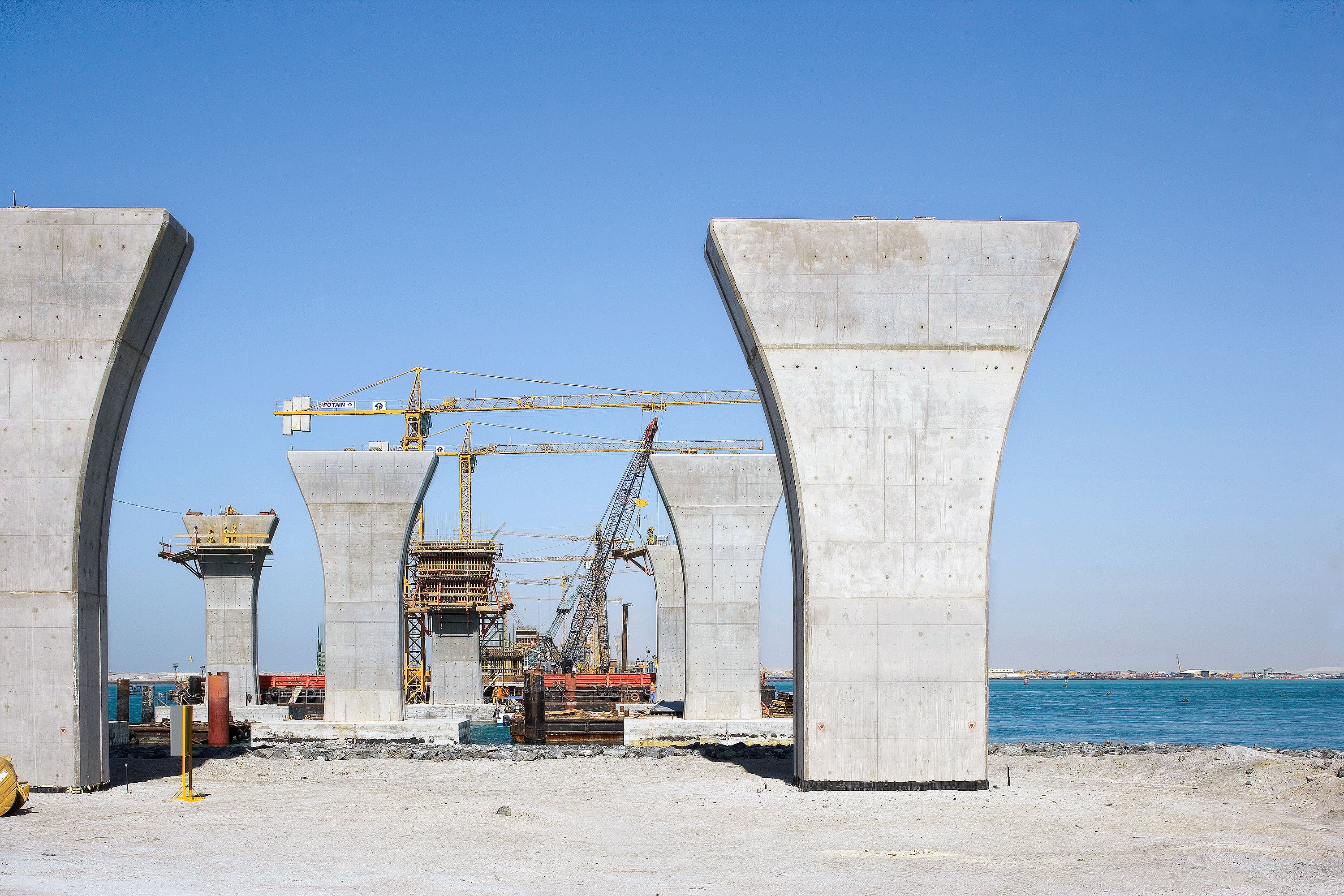

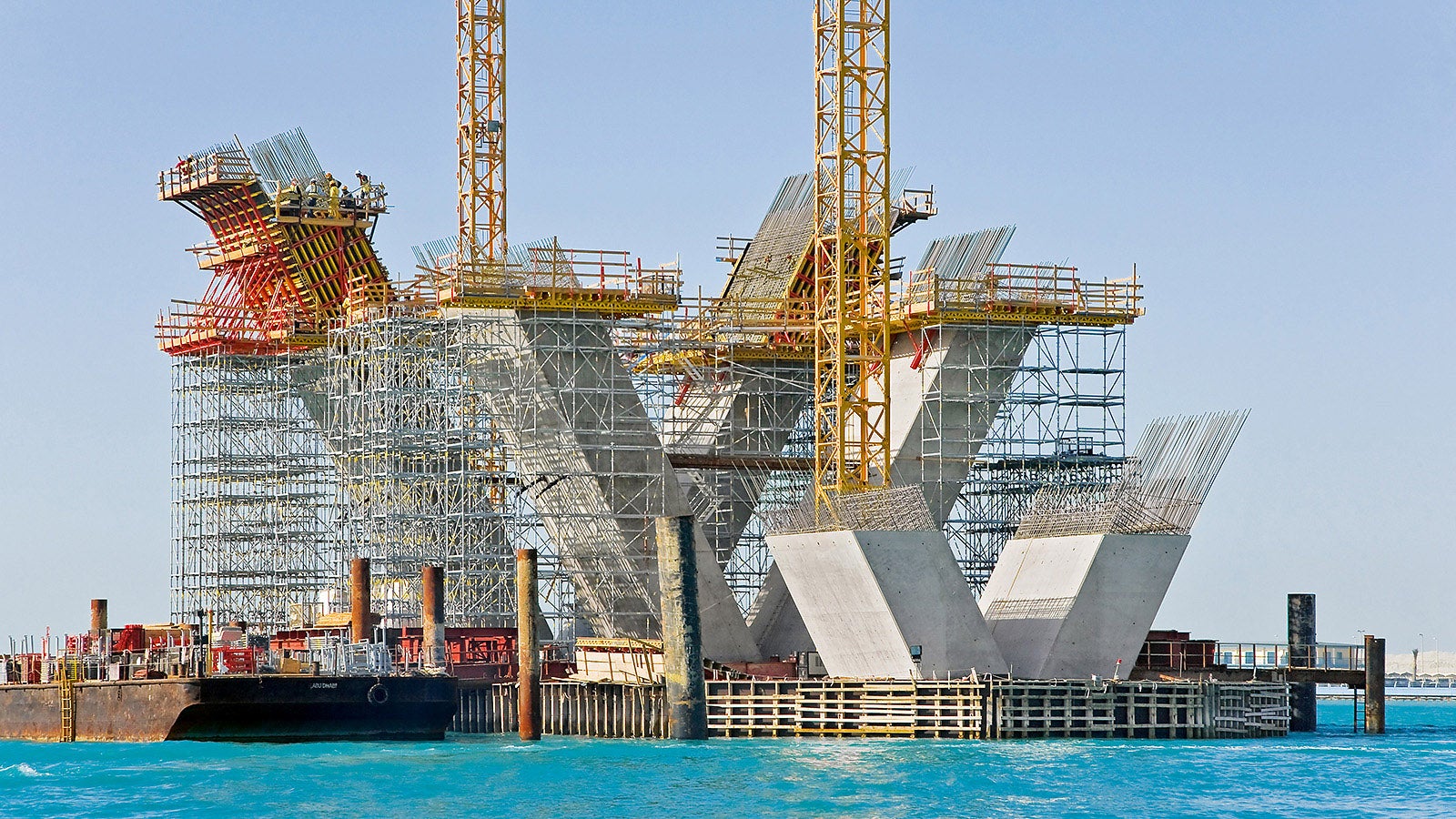

Production of two v-shaped sets of pier which are nearly 20 m high and inclined up to 27° production of abutments, 19 foreland piers and a superstructure

Solutions

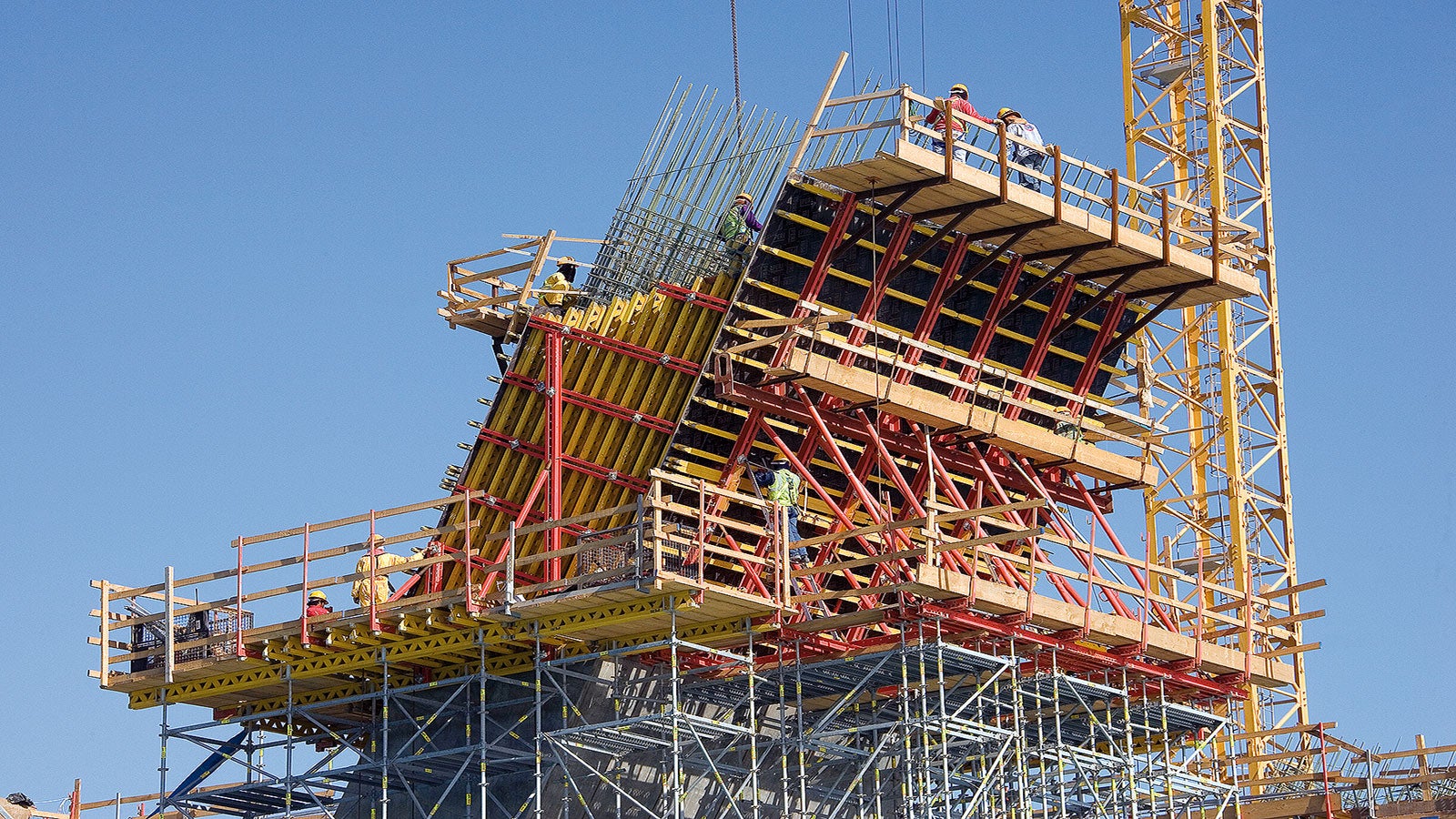

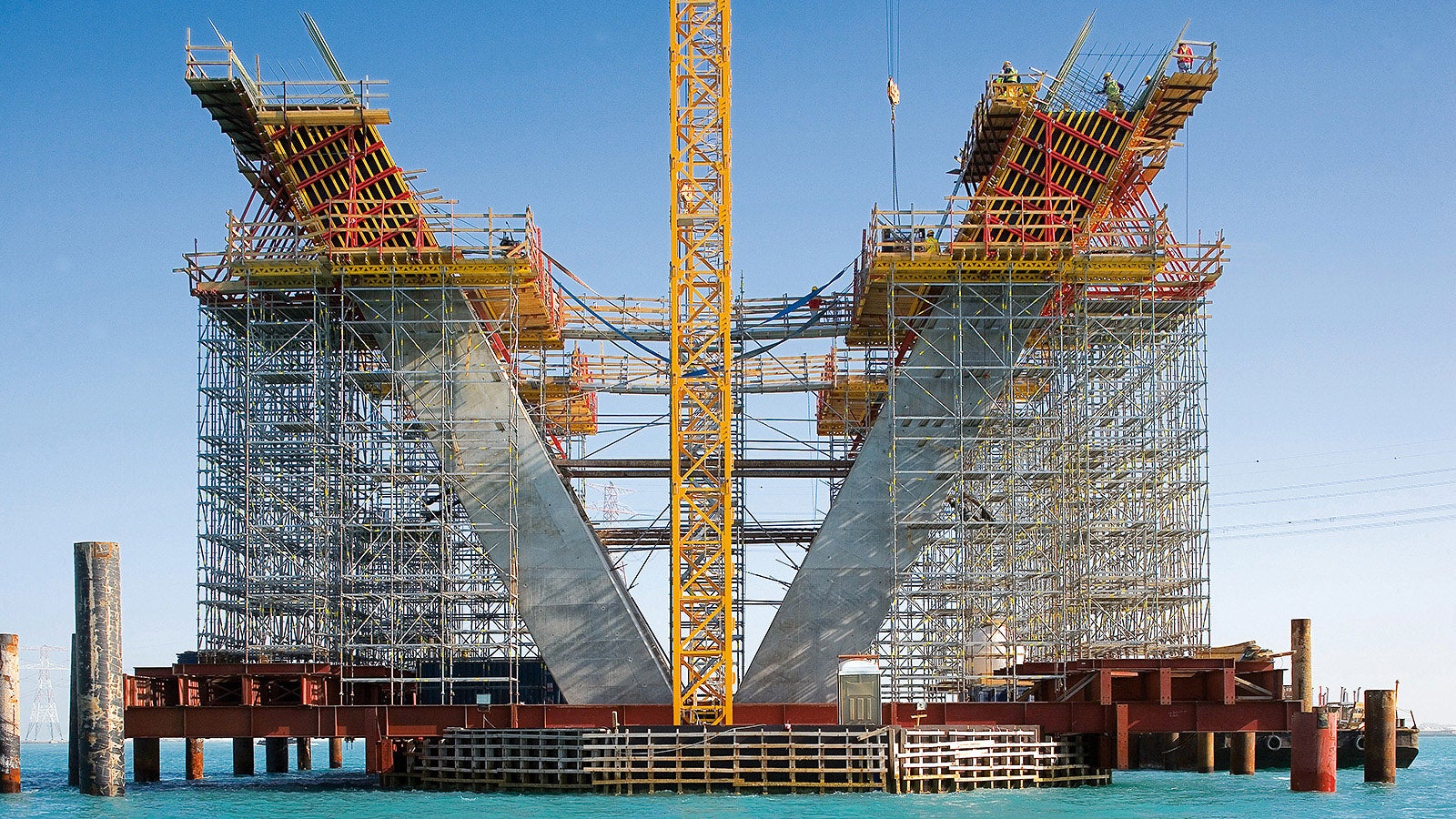

Formwork and shoring for the production of the main piers in four climbing steps with a concreting cycle height of 4.70m modification of scaffolding to the geometry and different occurring loads  usage of rentable system components

Customer benefits
Use of extensively-dimensioned moving units
Modification of the superstructure formwork to changes in the cross-section

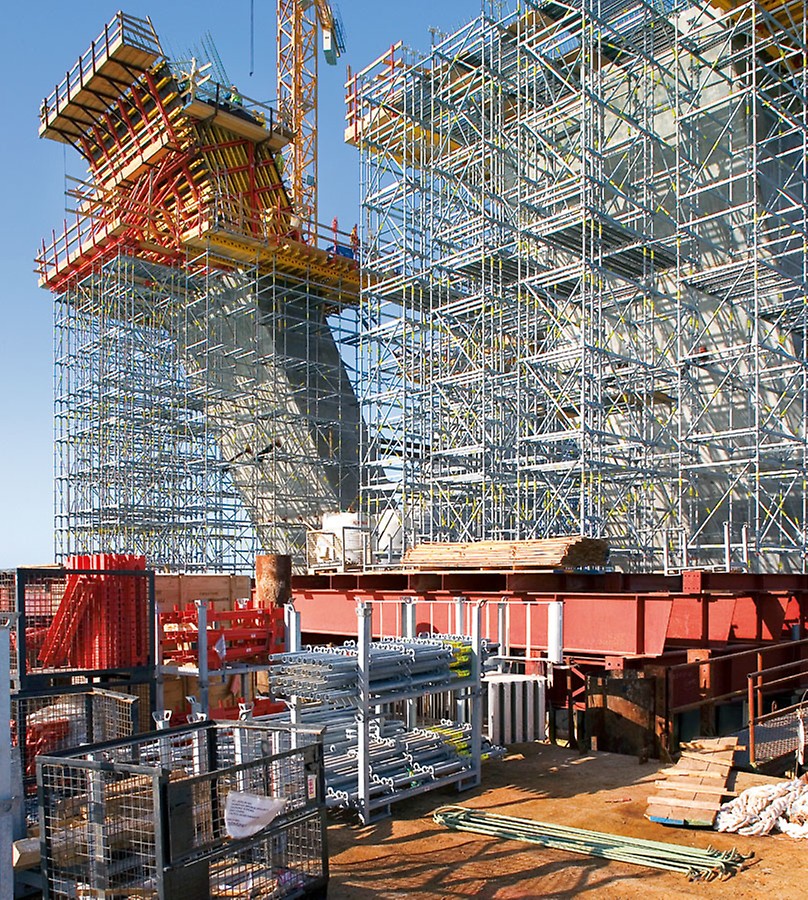

Ordered material storage

statement-sheikh-khalifa-bridge-peri-formwork
statement-sheikh-khalifa-bridge-peri-formwork
Jens Nagel
Deputy Project Manager | Site Manager
From PERI, we are used to getting reliability - for the technical support and the systems. The formwork solution used with VARIO and raised formwork units is extremely stable and the PERI UP modular scaffold is easy to install and flexible in use. The moving procedure is carried out with large-sized transportable units. With the PERI formwork solution for the cantilevered construction, it was possible for us to minimize the work involved for adapting to the different bridge cross-sections from cycle to cycle.

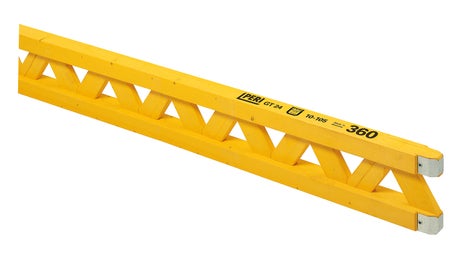

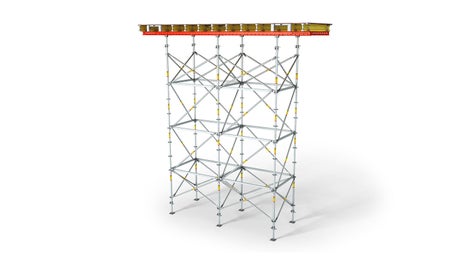

Related Products
