PERI UP Flex Weather Protection Roof in action
Your benefits at a glance-
Fast assembly

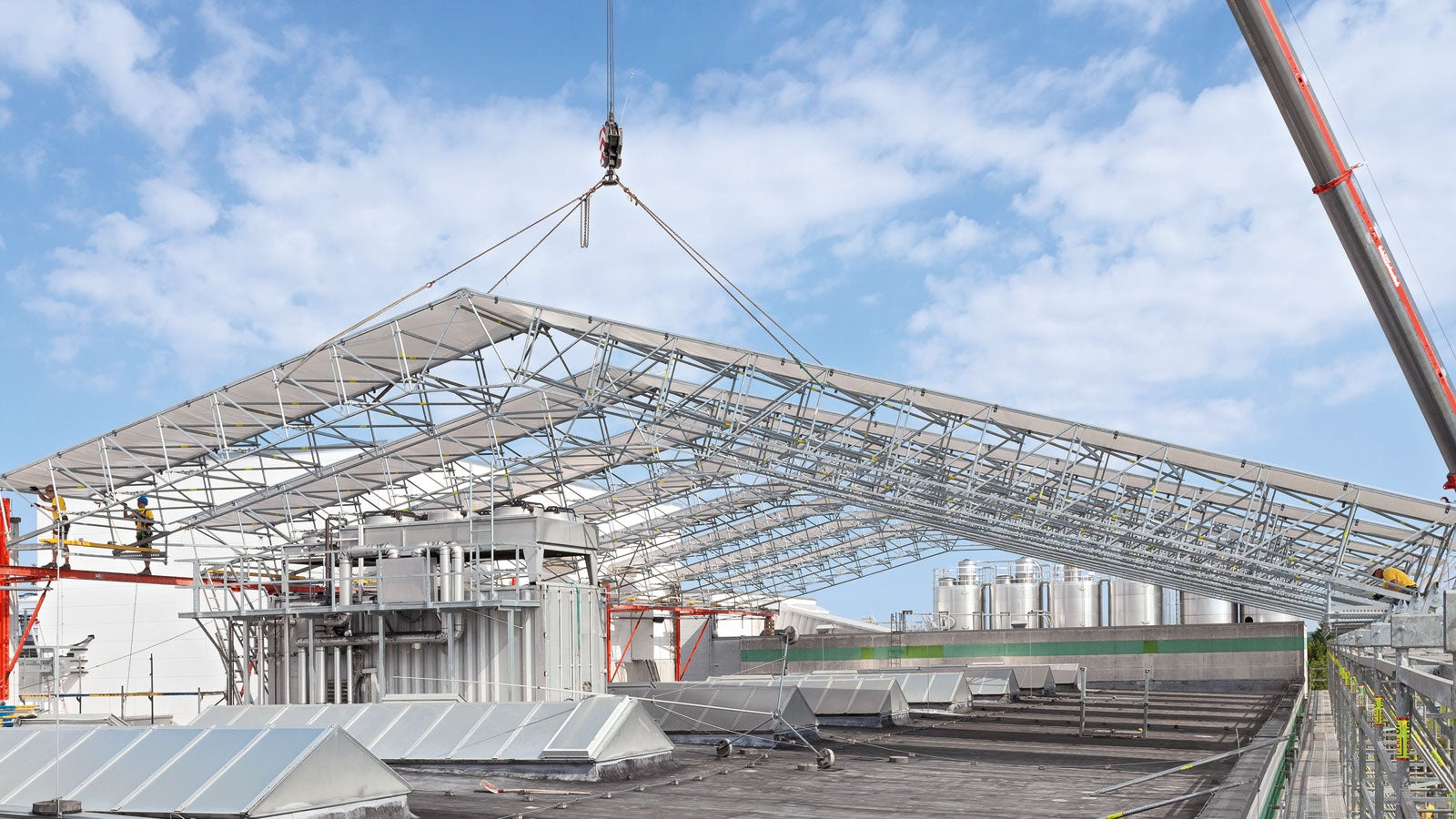

Easy pre-assembly on the ground, and raising the complete girder package by crane.
-
Flexible adaptability
Can be realized with different inclinations and geometries.
-
Safe without personal protective equipment

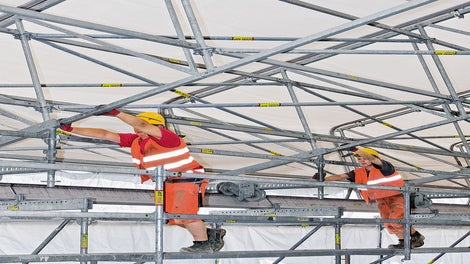

Walkways ensure safe working conditions on the roof segments without requiring personal protective equipment against falls from a height.
Product Data Sheet
Scaffold type
Weather Protection Roof
Dimensions
Dimensions: Height: 150 cm (LGS standard elements), Length: 300 cm or 150 cm (LGS standard elements), Standard roof pitch: 15°, other roof pitches on project-specific request
Type of use
Protective scaffolding
Construction type
Binder
Load class
load class 1 to 4 (0.75 kN/m² - 3.00 kN/m²); Load class 1 to 6 (0.75 kN/m² - 6.00 kN/m²)
Body heights
150 cm
Type of pavement
Steel
Structure principle
Pre-assembly on the ground
Norm
DIN EN 12810 and 12811
span
Up to 45 meters, up to 35 meters without undervoltage
Compatible with
PERI UP scaffolding construction kit, VARIOKIT engineering construction kit
